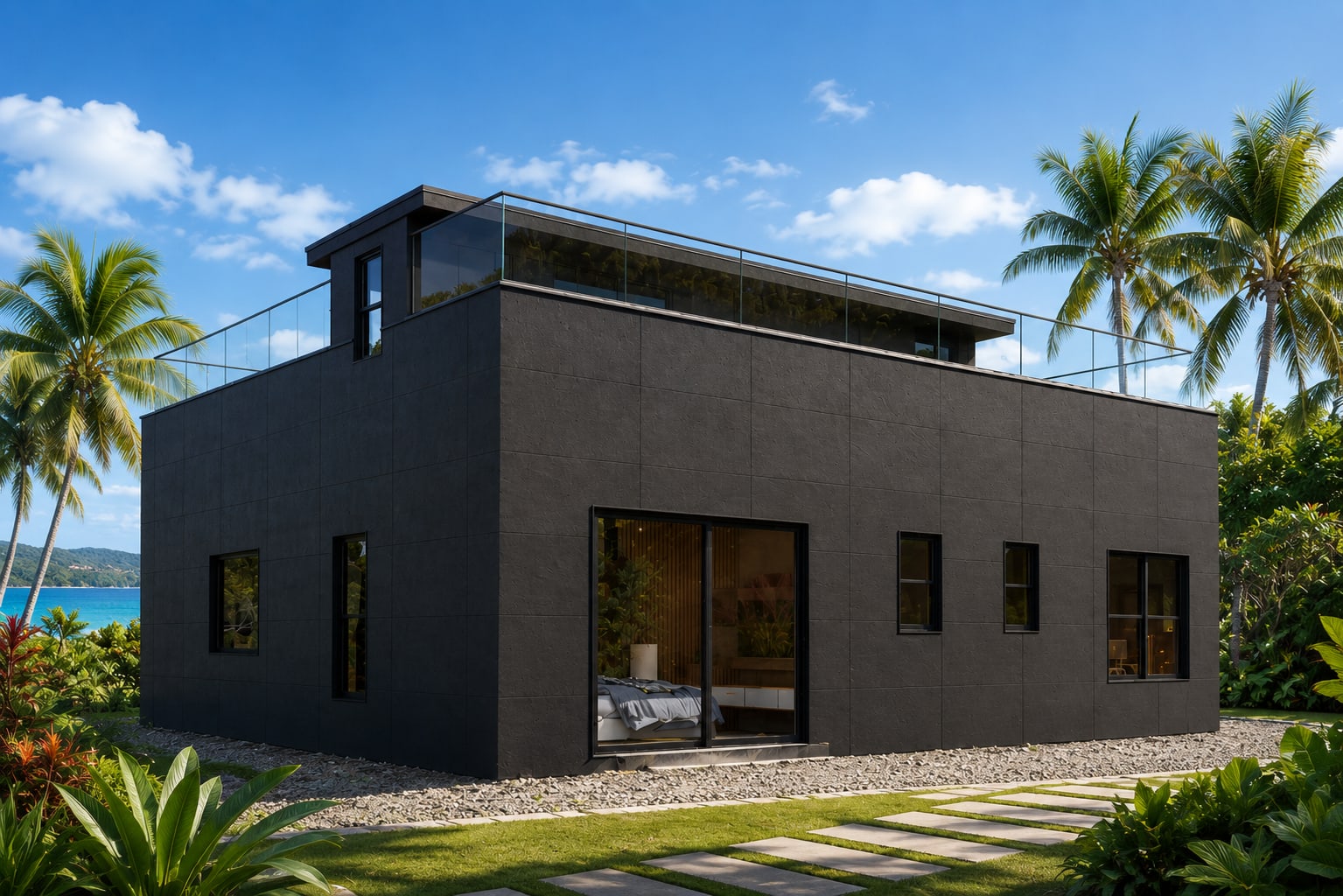

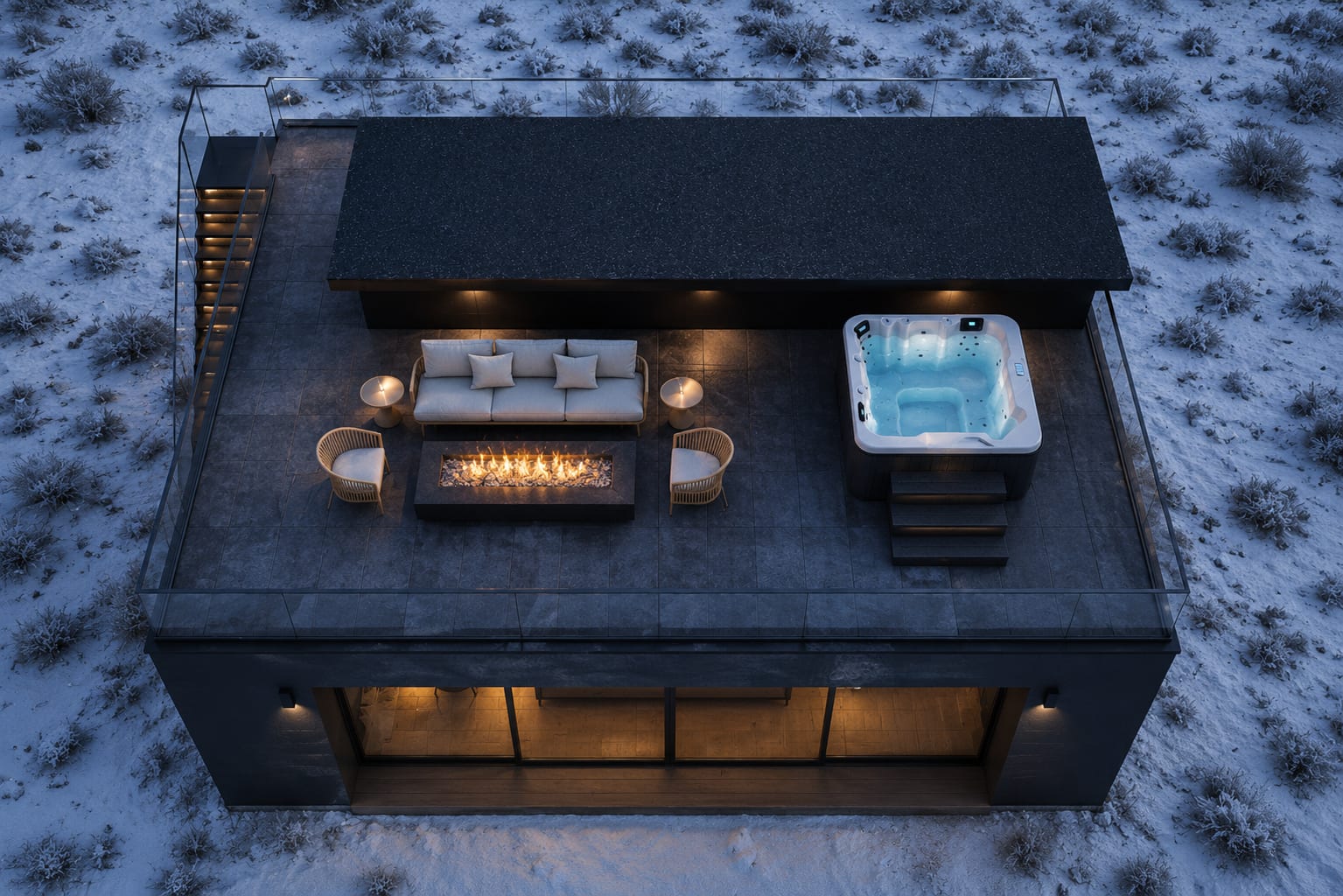

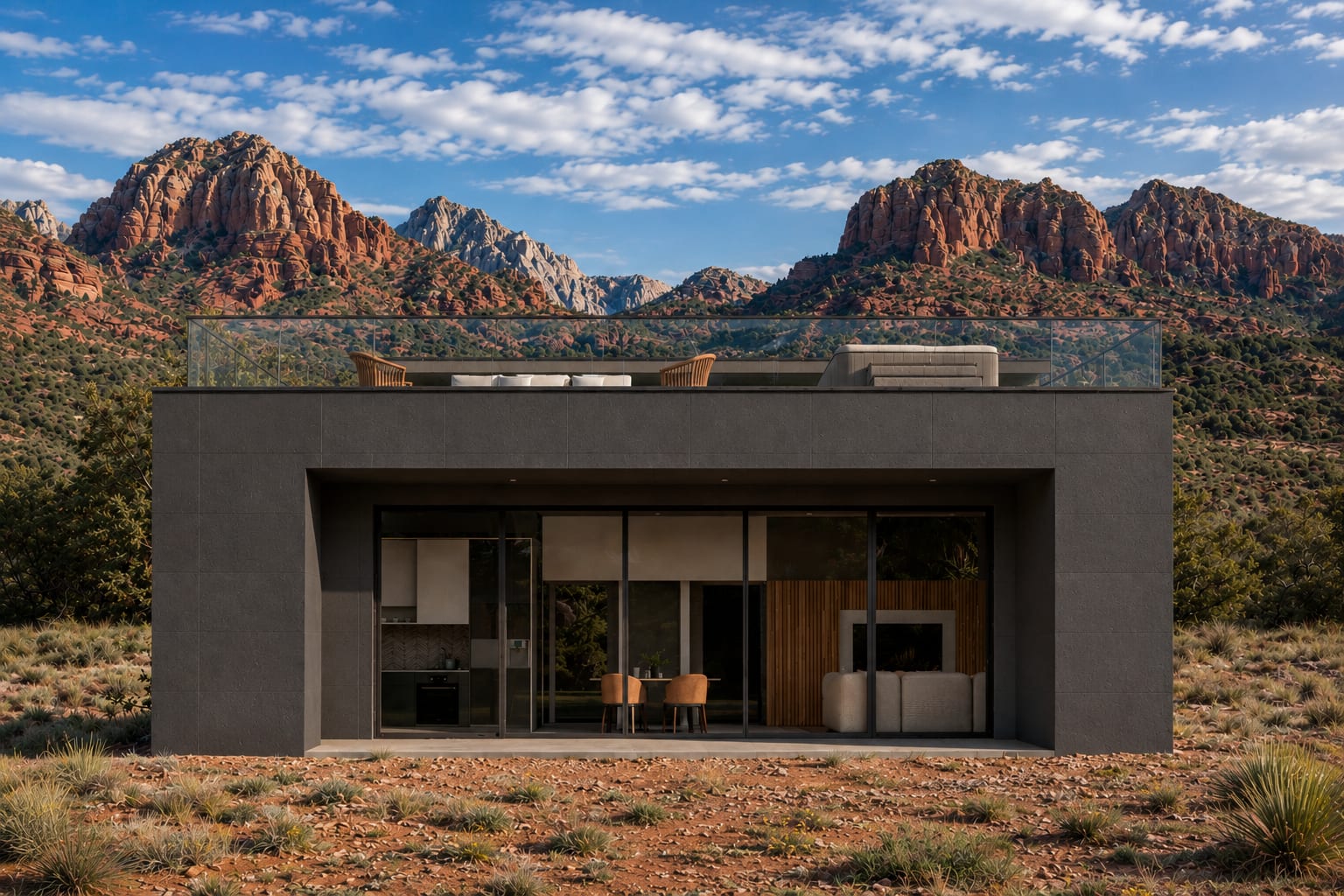

104A — The Minimalist Core
A smart, modern home designed for efficient living without compromise. The Minimalist Core combines clean architecture, open-concept design, and premium finishes into a compact footprint. Perfect for first-time buyers, vacation properties, rental income, or modern minimalist living.

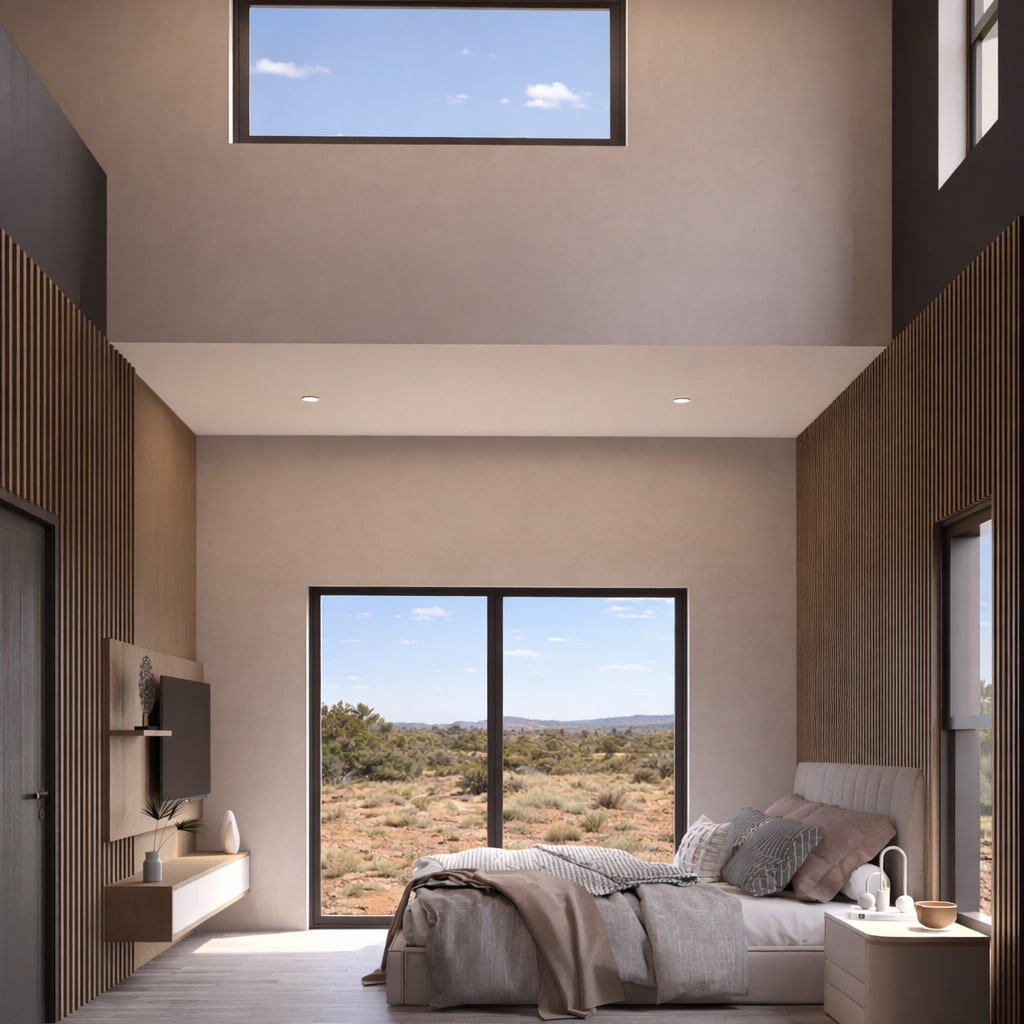

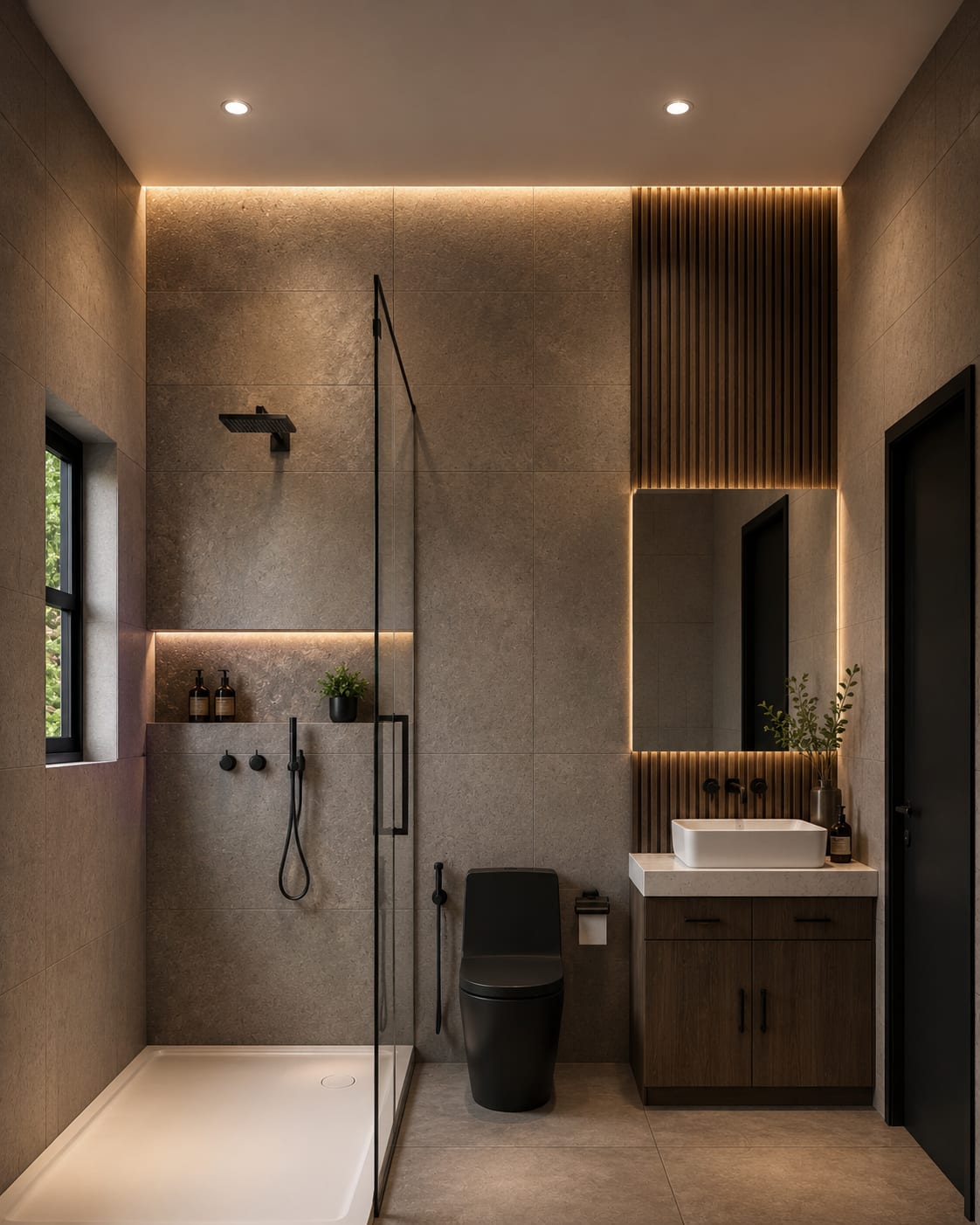

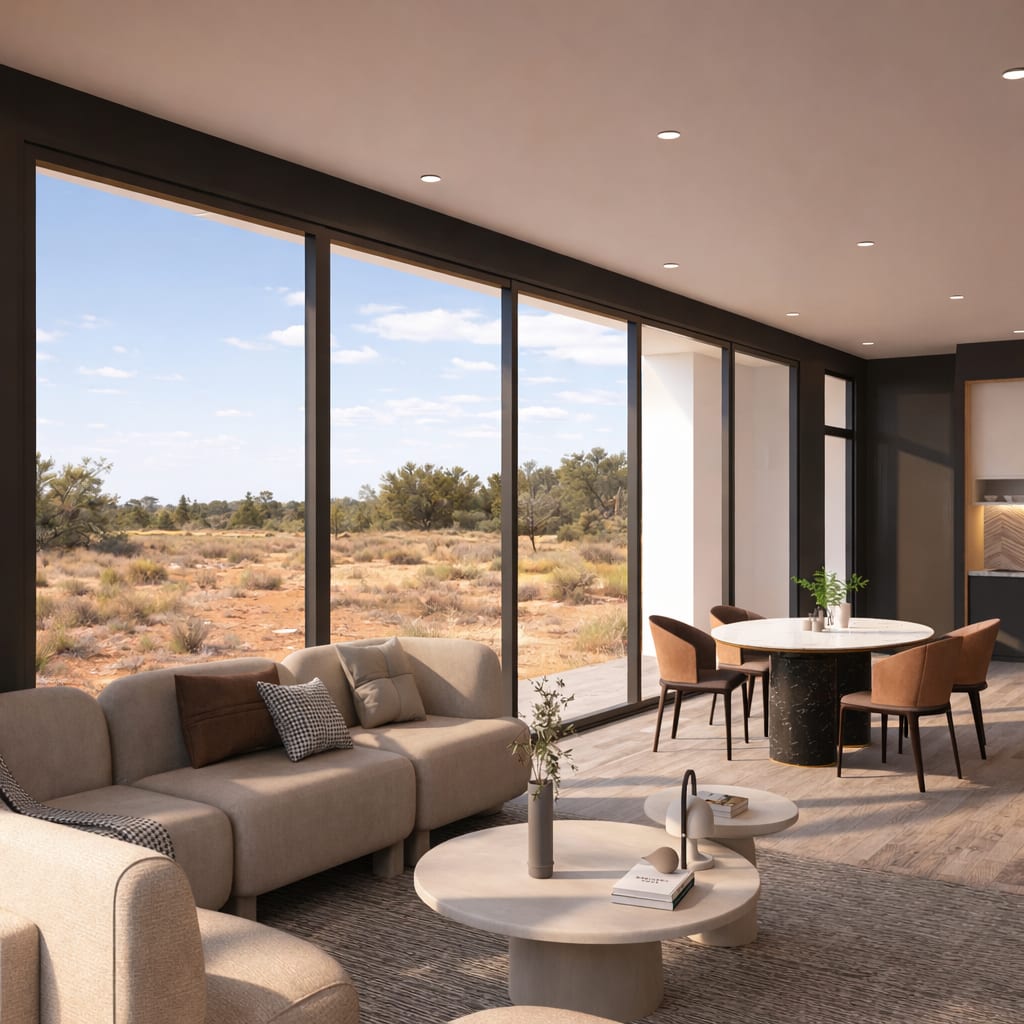

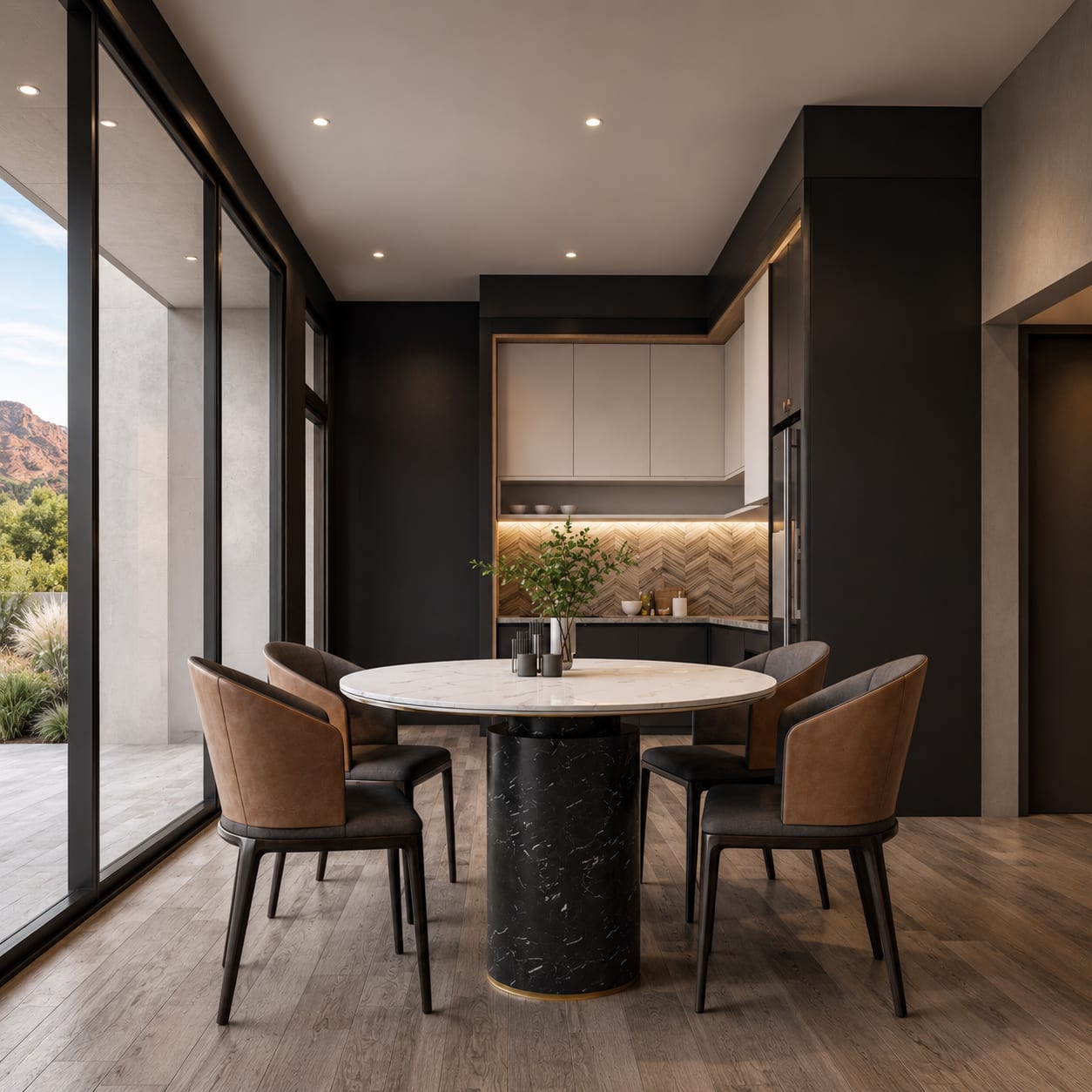

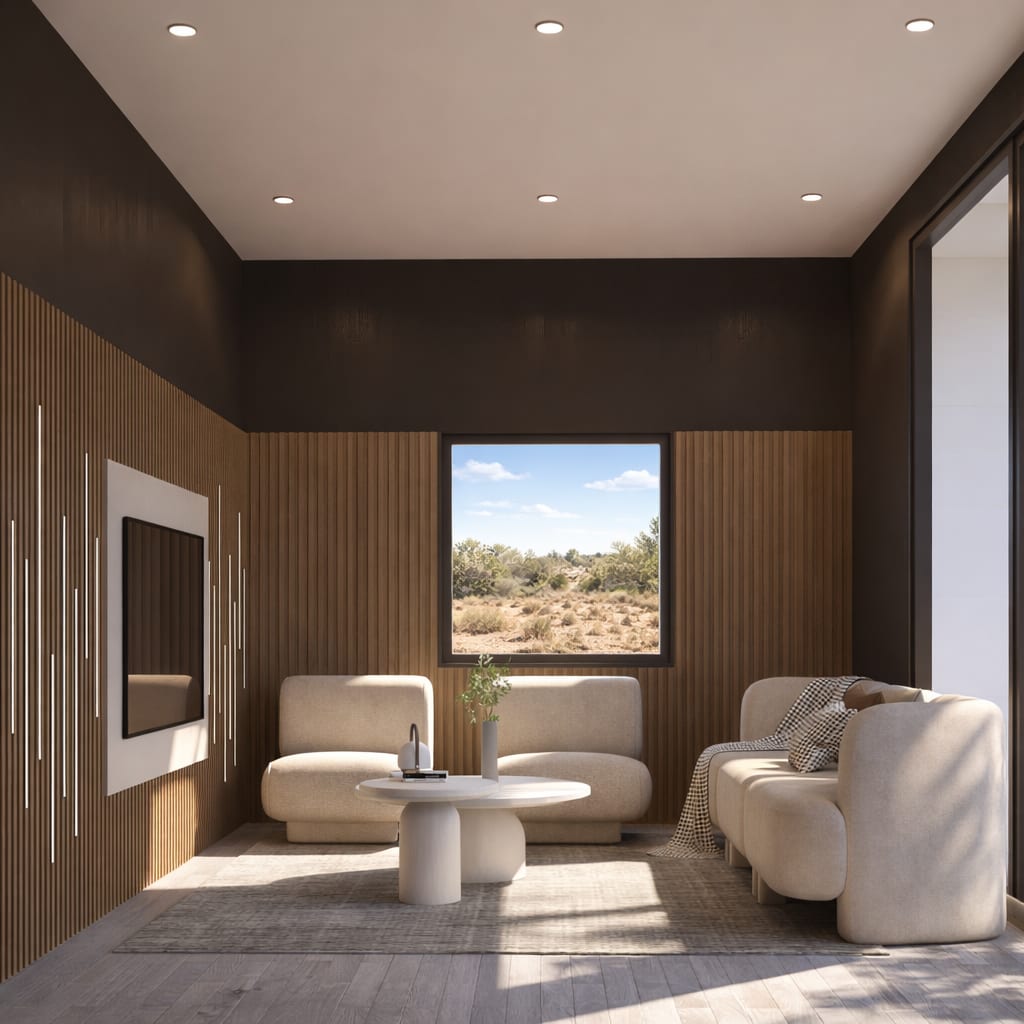

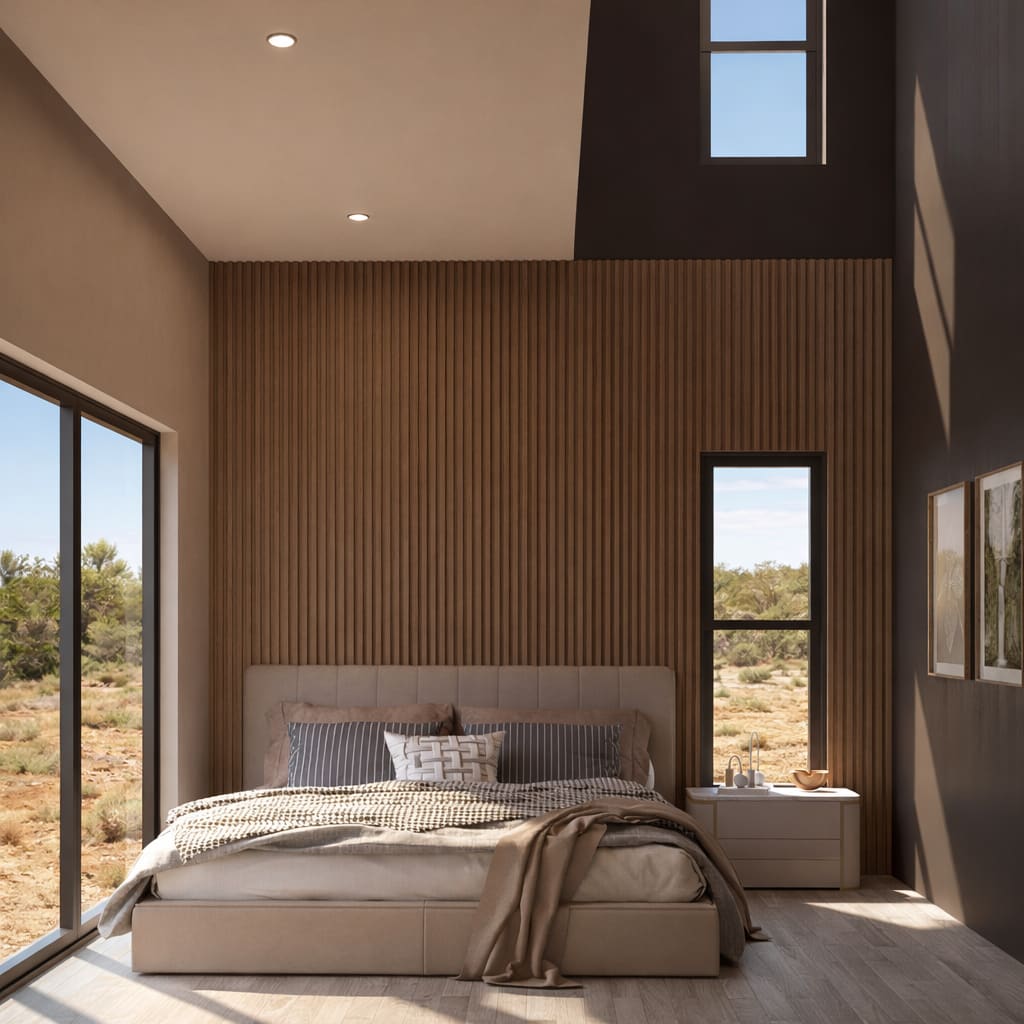

Por dentro del 104A — The Minimalist Core.
Pasa el cursor sobre cualquier foto con la insignia 📍 Plano para resaltar el cuarto correspondiente en el plano.
Lo que lleva cada 104A — The Minimalist Core.
Structure
- •Panelized 2x6 wood frame walls
- •Engineered roof trusses
- •Concrete slab foundation
- •Floor joists at 19.2" o.c.
Envelope
- •Rain screen and vapor barrier
- •R-22 wall insulation
- •R-40 attic insulation
- •Double-pane windows standard
Mechanical
- •Cold-climate heat pump
- •HRV with HEPA-grade filtration
- •Heat-recovery DHW
- •200A main service panel (EV-ready)
Interior Finishes
- •Quartz countertops
- •Soft-close panelized cabinetry
- •9' ceilings
- •Engineered hardwood floors
Ingeniería panel a panel.
- •Panelized 2x6 wood-frame walls
- •Factory-controlled assembly
- •R-22 continuous insulation
- •Built-in service cavity
- •Engineered for code compliance
- •Double-pane windows standard
- •3rd-party blower-door tested
- •Site assembly in 10-14 days
La ficha técnica completa.
| Componente | Material | Especificación | Notas |
|---|---|---|---|
| Foundation | Concrete Slab | 8" thick, reinforced | Torch On Membrane Foundation Waterproofing |
| Floor System | Engineered I-joists | TJI 11.875", 19.2" o.c. | OSB sub-floor adhered + screwed |
| Exterior Walls | Wood Stud 2x6 | 9' tall, 16" o.c. | Continuous R-value > 22 |
| Windows | Vinyl/Double Pane | U 0.18 / SHGC 0.30 | Triple Pane Upgrade Available |
| Roofing | Standing Seam Metal | 26-gauge, 16" panel | 40-yr finish warranty |
| HVAC | Cold Weather Heat Pump | 9 SEER / HSPF 12.5 / -25°C | |
| Ventilation | High-Efficiency HRV | 200 CFM, 80% recovery | HEPA-13 filtration |
El rendimiento del 104A — The Minimalist Core.
Costos operativos anuales
Planos arquitectónicos.
Míralo en acción.
Dónde entregamos.
Entrega disponible dentro de 1,500 km de cualquier instalación de New Leaf Vision. Los tiempos de entrega dependen de la configuración y la cola de producción vigente.
Comienza tu proyecto
¿Listo para construir tu 104A — The Minimalist Core? Nuestro equipo te guiará en cada etapa, desde la evaluación del terreno hasta las llaves en mano.
Cuéntanos sobre tu proyecto
Te conectaremos con el modelo adecuado y los precios de tu región.
