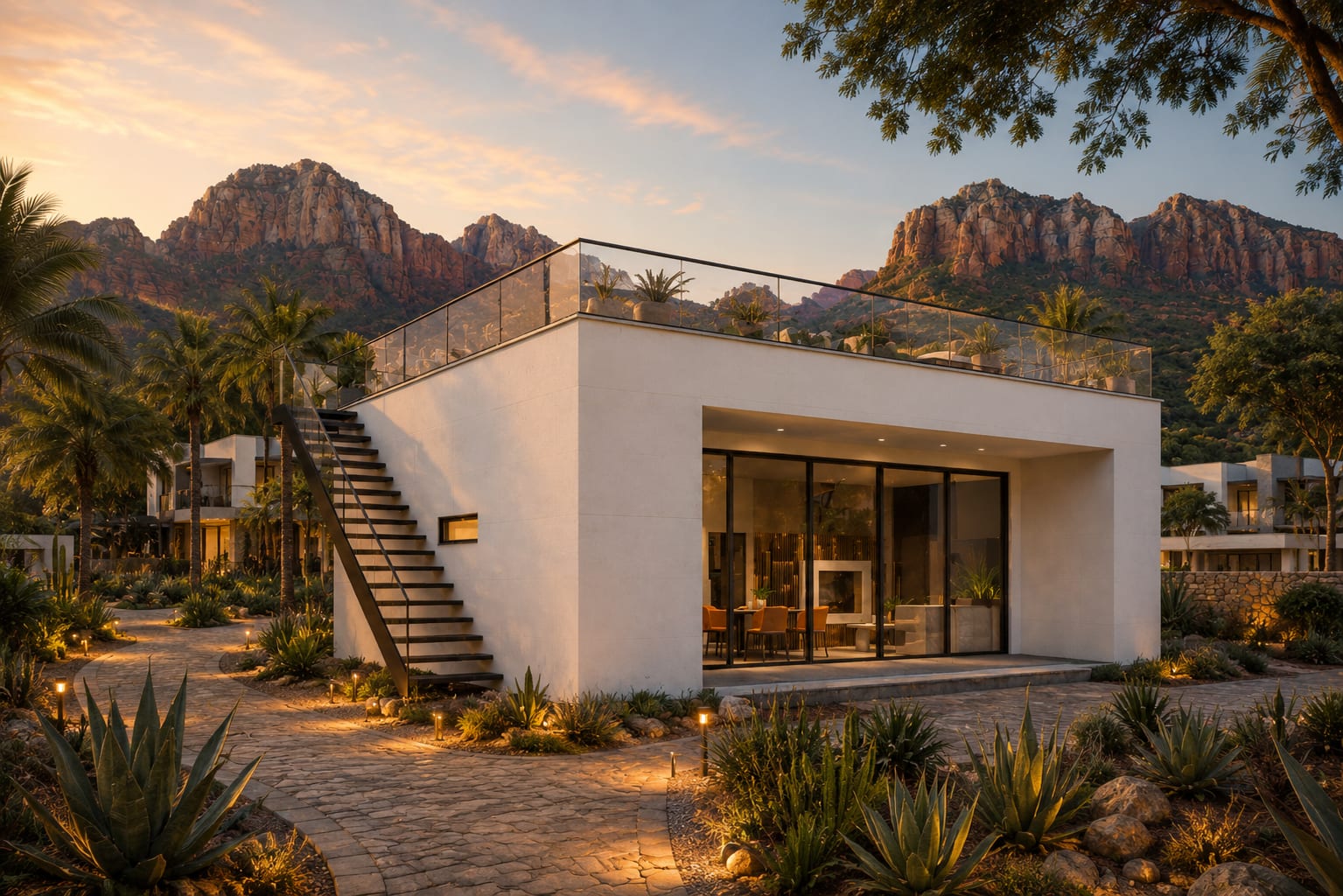

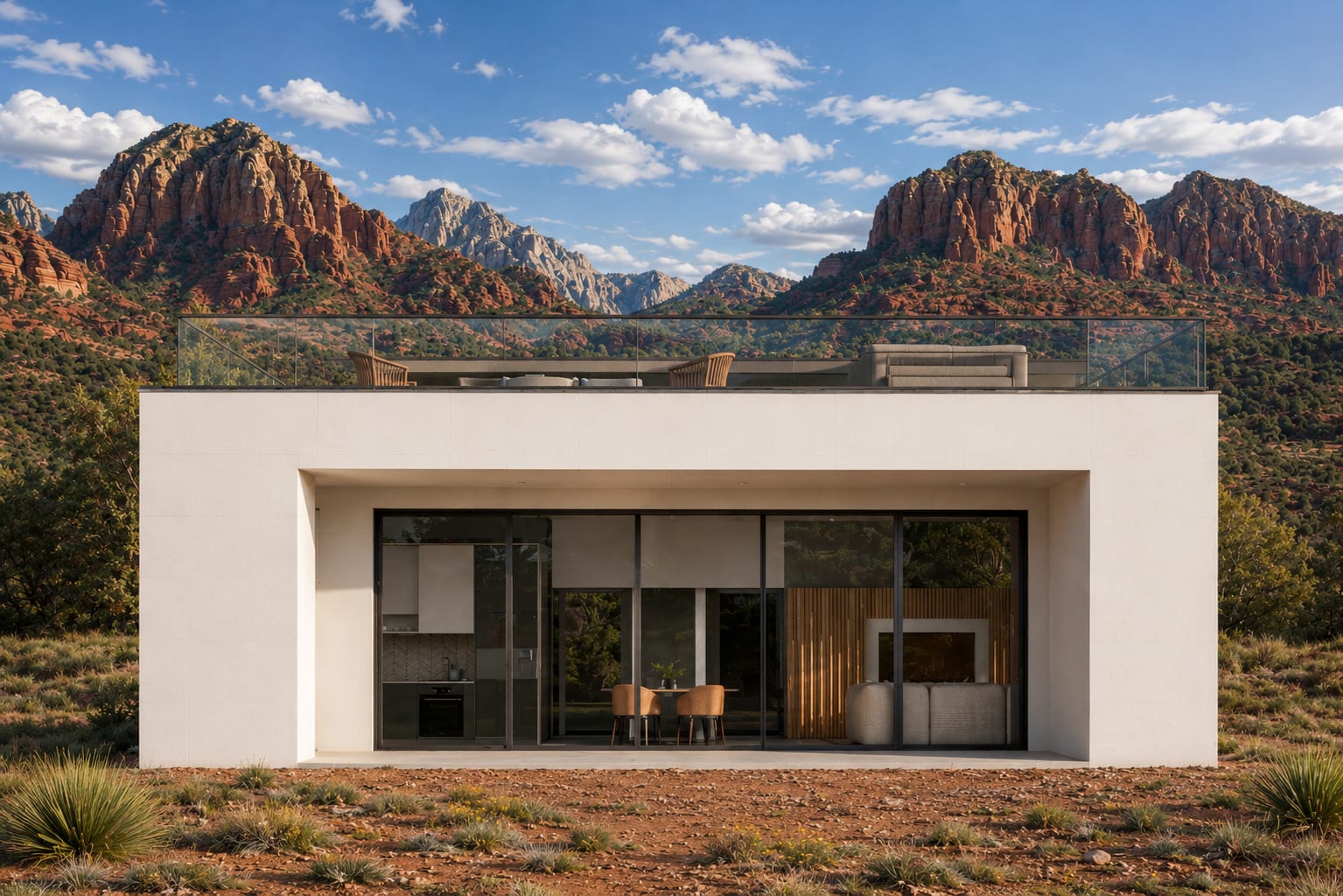

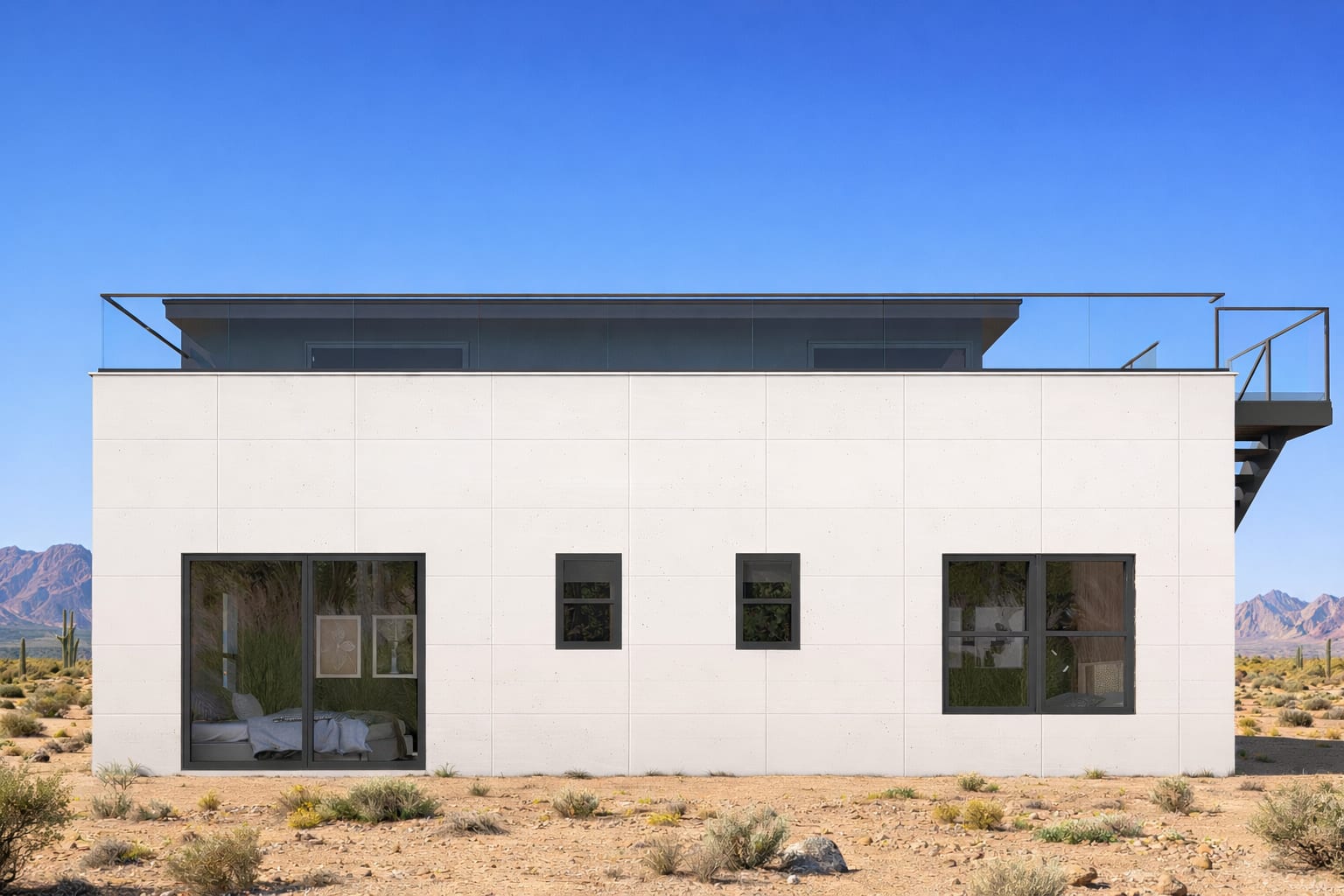

104B — The Minimalist Dual
A bold modern design that maximizes style, space, and flexibility. The Minimalist Dual blends clean architectural lines, premium finishes, and smart functionality into a compact two-bedroom layout—enhanced by a stunning rooftop living experience designed for entertaining, relaxation, and elevated modern living.

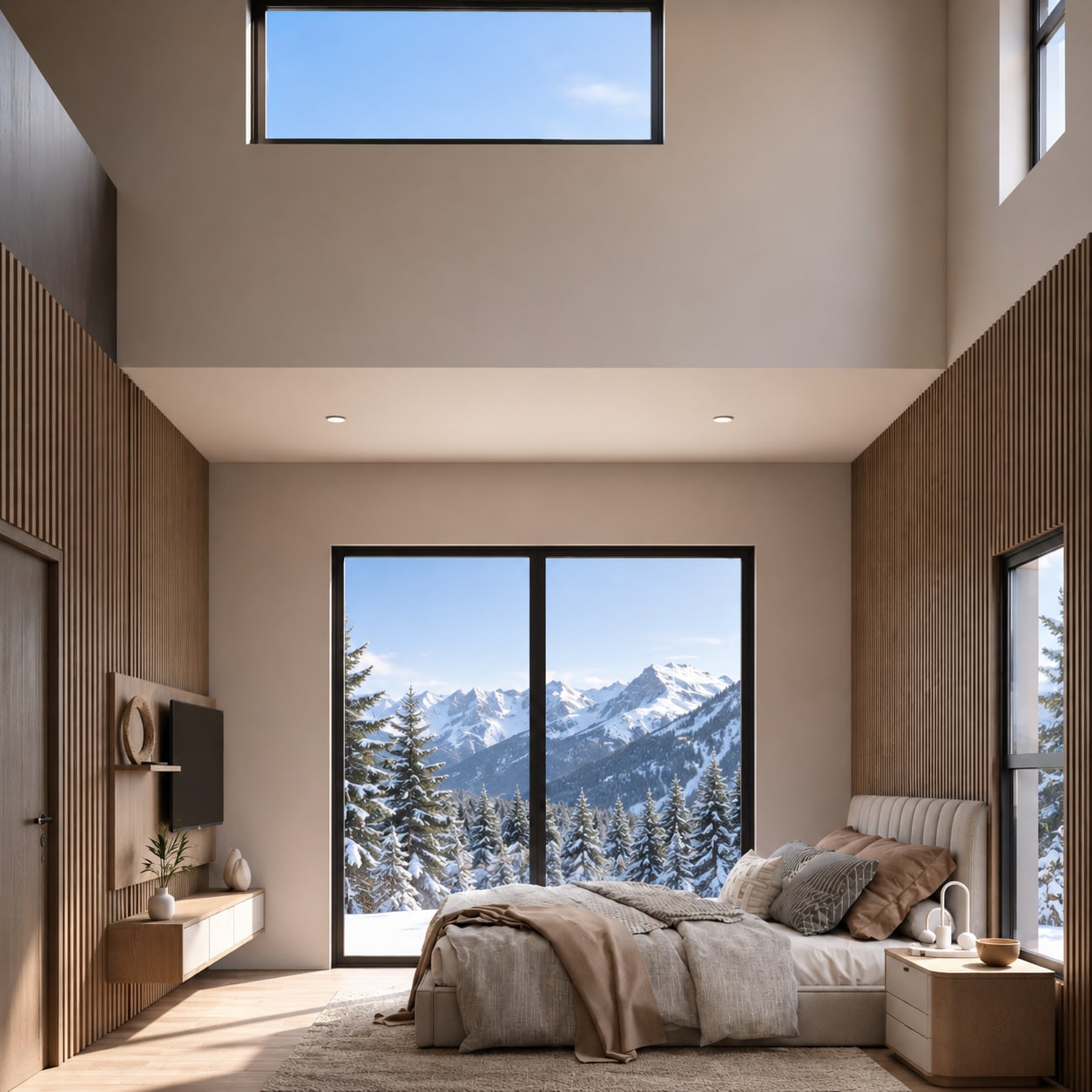

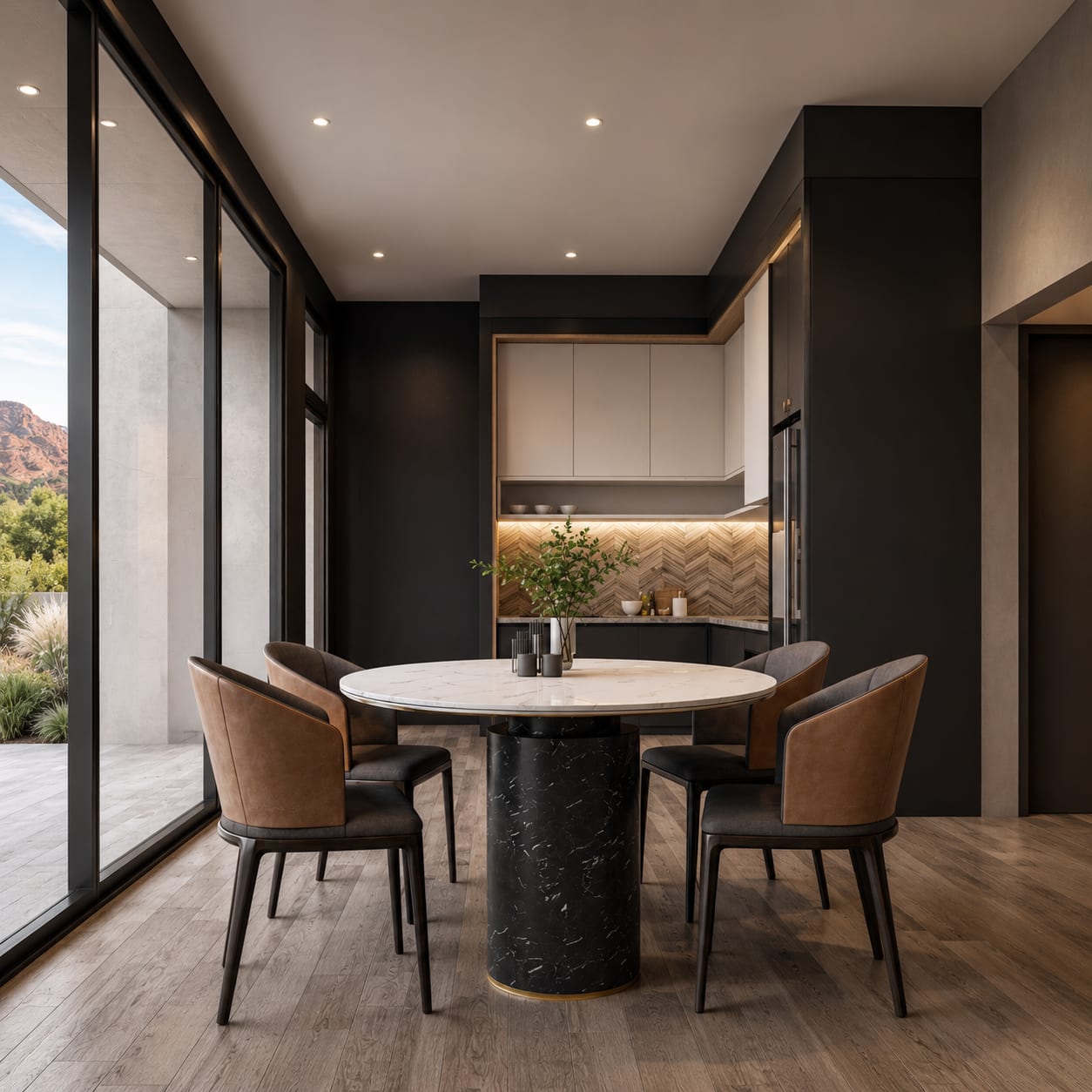

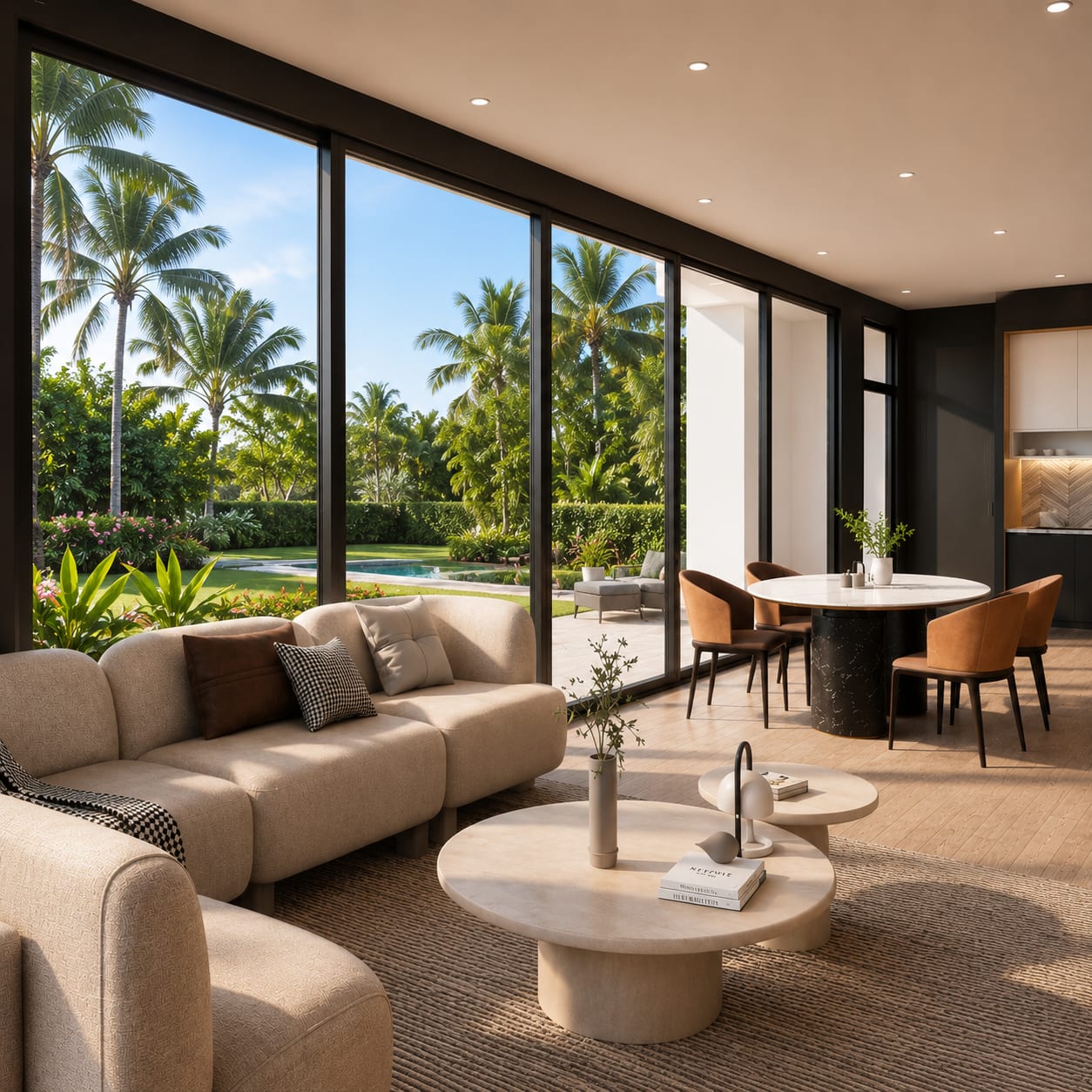

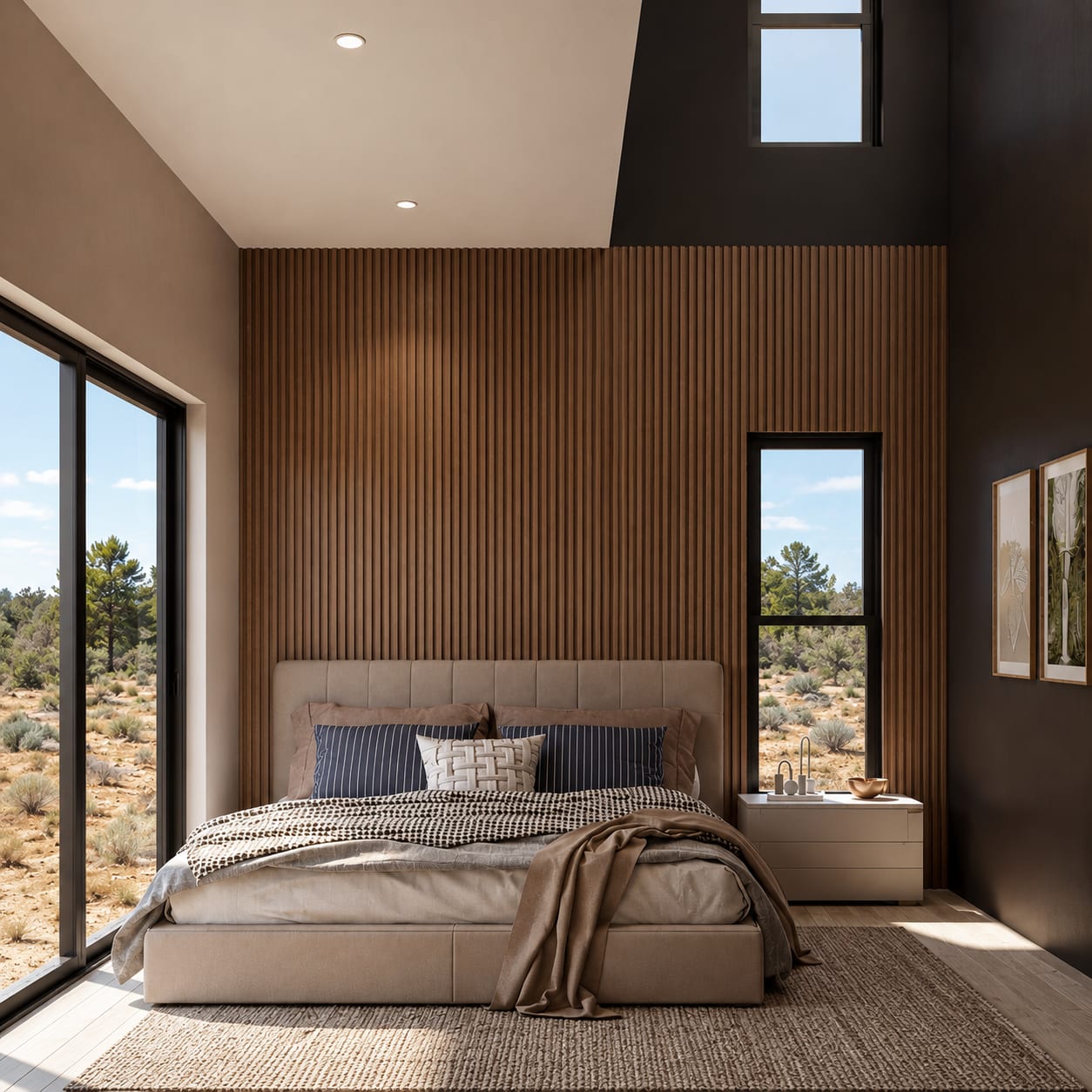

Por dentro del 104B — The Minimalist Dual.
Pasa el cursor sobre cualquier foto con la insignia 📍 Plano para resaltar el cuarto correspondiente en el plano.
Lo que lleva cada 104B — The Minimalist Dual.
Structure
- •Panelized 2x6 wood frame walls
- •Engineered roof trusses
- •Concrete slab foundation
- •Floor joists at 19.2" o.c.
Envelope
- •Rain Screen and Vapor Barrier
- •R-22 wall insulation
- •R-40 attic insulation
- •Double-pane windows standard
Mechanical
- •Cold-climate heat pump
- •HRV with HEPA-grade filtration
- •Heat-recovery DHW
- •200A main service panel (EV-ready)
Interior Finishes
- •Quartz countertops
- •Soft-close panelized cabinetry
- •9' ceilings
- •Engineered hardwood floors
Ingeniería panel a panel.
- •Panelized 2x6 wood-frame walls
- •Factory-controlled assembly
- •R-22 continuous insulation
- •Built-in service cavity
- •Engineered for code compliance
- •Double-pane windows standard
- •3rd-party blower-door tested
- •Site assembly in 10-14 days
La ficha técnica completa.
| Componente | Material | Especificación | Notas |
|---|---|---|---|
| Foundation | Concrete Slab | 6" thick, reinforced | Torch On Membrane Foundation Waterproofing |
| Floor System | Engineered I-joists | TJI 11.875", 19.2" o.c. | OSB sub-floor adhered + screwed |
| Exterior Walls | Wood Stud 2x6 | 9' tall, 16" o.c. | Continuous R-value > 22 |
| Windows | Vinyl/Double Pane | U 0.18 / SHGC 0.30 | Triple Pane Upgrade Available |
| Roofing | Standing Seam Metal | 26-gauge, 16" panel | 40-yr finish warranty |
| HVAC | Cold Weather Heat Pump | 9 SEER / HSPF 12.5 / -25°C | |
| Ventilation | High-Efficiency HRV | 200 CFM, 80% recovery | HEPA-13 filtration |
El rendimiento del 104B — The Minimalist Dual.
Costos operativos anuales
Míralo en acción.
Dónde entregamos.
Entrega disponible dentro de 1,500 km de cualquier instalación de New Leaf Vision. Los tiempos de entrega dependen de la configuración y la cola de producción vigente.
Comienza tu proyecto
¿Listo para construir tu 104B — The Minimalist Dual? Nuestro equipo te guiará en cada etapa, desde la evaluación del terreno hasta las llaves en mano.
Cuéntanos sobre tu proyecto
Te conectaremos con el modelo adecuado y los precios de tu región.
