105A-THE ORBIT
A modern two-storey home designed for elevated living, flexibility, and comfort. Featuring 1,570 sq ft of thoughtfully planned space with 3 bedrooms, 3 bathrooms, a dedicated office, and expansive glass-railed outdoor decks, The Orbit blends open-concept design with seamless indoor-outdoor living. Perfect for families, entertaining, or creating your ideal work-from-home lifestyle.
Por dentro del 105A-THE ORBIT.

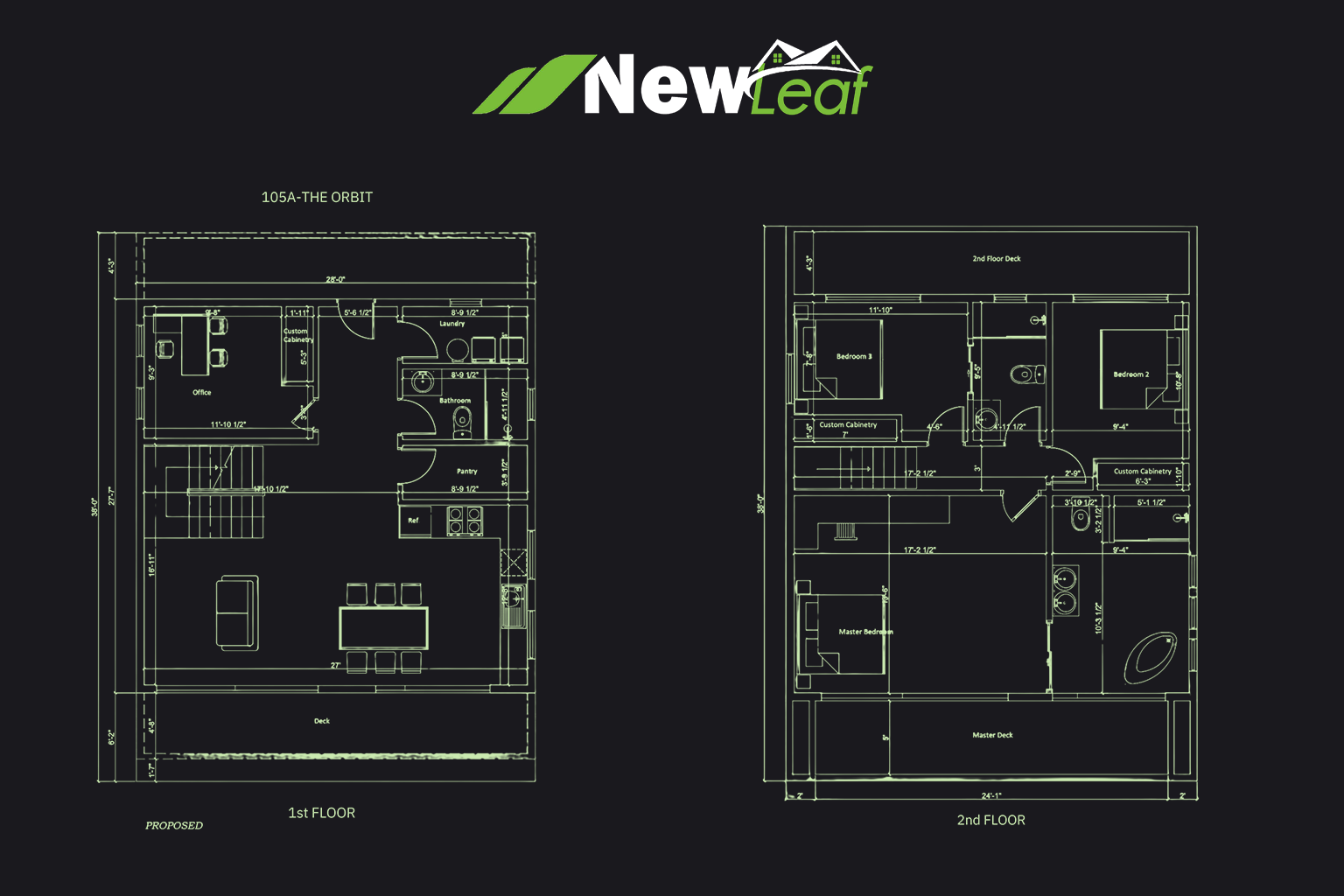

Pasa el cursor sobre cualquier foto con la insignia 📍 Plano para resaltar el cuarto correspondiente en el plano.
Lo que lleva cada 105A-THE ORBIT.
Structure
- •Engineered timber floor joists at 19.2" o.c.
- •Panelized 2x6 wood frame walls
- •Engineered I Joist roof System
- •Concrete foundation system
Envelope
- •Rain screen and vapor barrier
- •R-22 wall insulation
- •R-40 attic insulation
- •Double-pane windows standard
Mechanical
- •Cold-climate heat pump
- •HRV with HEPA-grade filtration
- •Heat-recovery DHW
- •200A main service panel (EV-ready)
Interior Finishes
- •Quartz countertops
- •Soft-close panelized cabinetry
- •9' ceilings
- •Engineered hardwood floors
Ingeniería panel a panel.
- •Panelized wood-frame construction
- •Factory-controlled quality at every stage
- •Continuous exterior insulation
- •Built-in service cavity for wiring + plumbing
- •Engineered for code compliance + high snow loads
- •Double-pane window upgrade available
- •3rd-party tested for air-tightness
- •Days, not weeks, to assemble on-site
La ficha técnica completa.
| Componente | Material | Especificación | Notas |
|---|---|---|---|
| Foundation | Concrete Forms | 8" Wall | Torch On Membrane Foundation Waterproofing |
| Floor System | Engineered I-joists | 11.875 @ 19'2 OC | OSB sub floor glewed and screwed |
| Exterior Walls | 2x6 Wood Stud | 9'0 Tall, 16" OC | Continuous R-Value >22 |
| Windows | Vinyl, Double Pane | U 0.18\ SHGC 0.30 | Triple Pane Upgrade Available |
| Roofing | Standing Seam Metal | 26-gauge, 16" Panel | 40- yr Finish Warranty |
| HVAC | Cold Weather Heat Pump | 9 SEER / HSPF 12.5 / -25°C | |
| Ventilation | High-Efficiency HRV | 200 CFM, 80% recovery | HEPA-13 filtration |
El rendimiento del 105A-THE ORBIT.
Costos operativos anuales
Míralo en acción.
Dónde entregamos.
Entrega disponible dentro de 1,500 km de cualquier instalación de New Leaf Vision. Los tiempos de entrega dependen de la configuración y la cola de producción vigente.
Comienza tu proyecto
¿Listo para construir tu 105A-THE ORBIT? Nuestro equipo te guiará en cada etapa, desde la evaluación del terreno hasta las llaves en mano.
Cuéntanos sobre tu proyecto
Te conectaremos con el modelo adecuado y los precios de tu región.
