Modelo 107
107-THE COMPOUND
Designed for those who want more space, more flexibility, and more lifestyle. The Compound combines 2,950 sq ft of premium living with expansive outdoor spaces, a private gym, dedicated office, and luxury-inspired design built for modern families and elevated living.
2950
sq ft
4
Bedrooms
3
Bathrooms
$498K
DIY From
$973
Installed From
Especificaciones rápidas
Footprint
2950 sq ft
Building Size
49 X 57
Roofing
I joist and Trusses
BC Step Code
Step Code Level 3
Build Time
16 Weeks
Recorre la construcción
Por dentro del 107-THE COMPOUND .
Características y sistemas
Lo que lleva cada 107-THE COMPOUND .
Structure
- •Engineered timber floor joists at 19.2" o.c.
- •Panelized 2x6 wood frame walls
- •Engineered I Joist roof System and Engineered Trusses
- •Concrete foundation system
Envelope
- •Rain screen and vapor barrier
- •R-22 wall insulation
- •R-40 attic insulation
- •Double-pane windows standard
Mechanical
- •Cold-climate heat pump
- •HRV with HEPA-grade filtration
- •Heat-recovery DHW
- •200A main service panel (EV-ready)
Interior Finishes
- •Quartz countertops
- •Soft-close panelized cabinetry
- •9' ceilings
- •Engineered hardwood floors
Desglose del sistema de muros
Ingeniería panel a panel.
- •Panelized wood-frame construction
- •Factory-controlled quality at every stage
- •Continuous exterior insulation
- •Built-in service cavity for wiring + plumbing
- •Engineered for code compliance + high snow loads
- •Triple-pane window upgrade available
- •3rd-party tested for air-tightness
- •Days, not weeks, to assemble on-site
Especificaciones detalladas
La ficha técnica completa.
| Componente | Material | Especificación | Notas |
|---|---|---|---|
| Foundation | Concrete Forms | 8" Wall | Torch On Membrane Foundation Waterproofing |
| Floor System | Engineered I-Joists | 11.875 @ 19'2 O.C. | OSB sub floor glewed and screwed |
| Exterior Walls | 2X6 Wood Stud | 9" Tall, 16 O.C. | Continuous R-Value >22 |
| Windows | Vinyl, Double Pane | U 0.18\ SHGC 0.30 | Triple Pane Upgrade Available |
| Roofing | Standing Seam Metal | 26-gauge, 16 panel | 40-yr Finish Warranty |
| HVAC | Cold Weather Heat Pump | 9 SEER / HSPF 12.5 / -25°C | |
| Ventilation | High Efficiency HRV | 200 CFM, 80% recovery | HEPA-13 filtration |
Comparación de desempeño
El rendimiento del 107-THE COMPOUND .
Energy Efficiency25%
Lower energy loss than conventional build average
Structural Strength80%
Exceeds NBC 2020 by 40%
Build Speed80%
14 weeks vs. 32 weeks site-built
Air Tightness40%
2.50 ACH50
Costos operativos anuales
New Leaf Construcción convencional
JanFebMarAprMayJunJulAugSepOctNovDec
Documentos

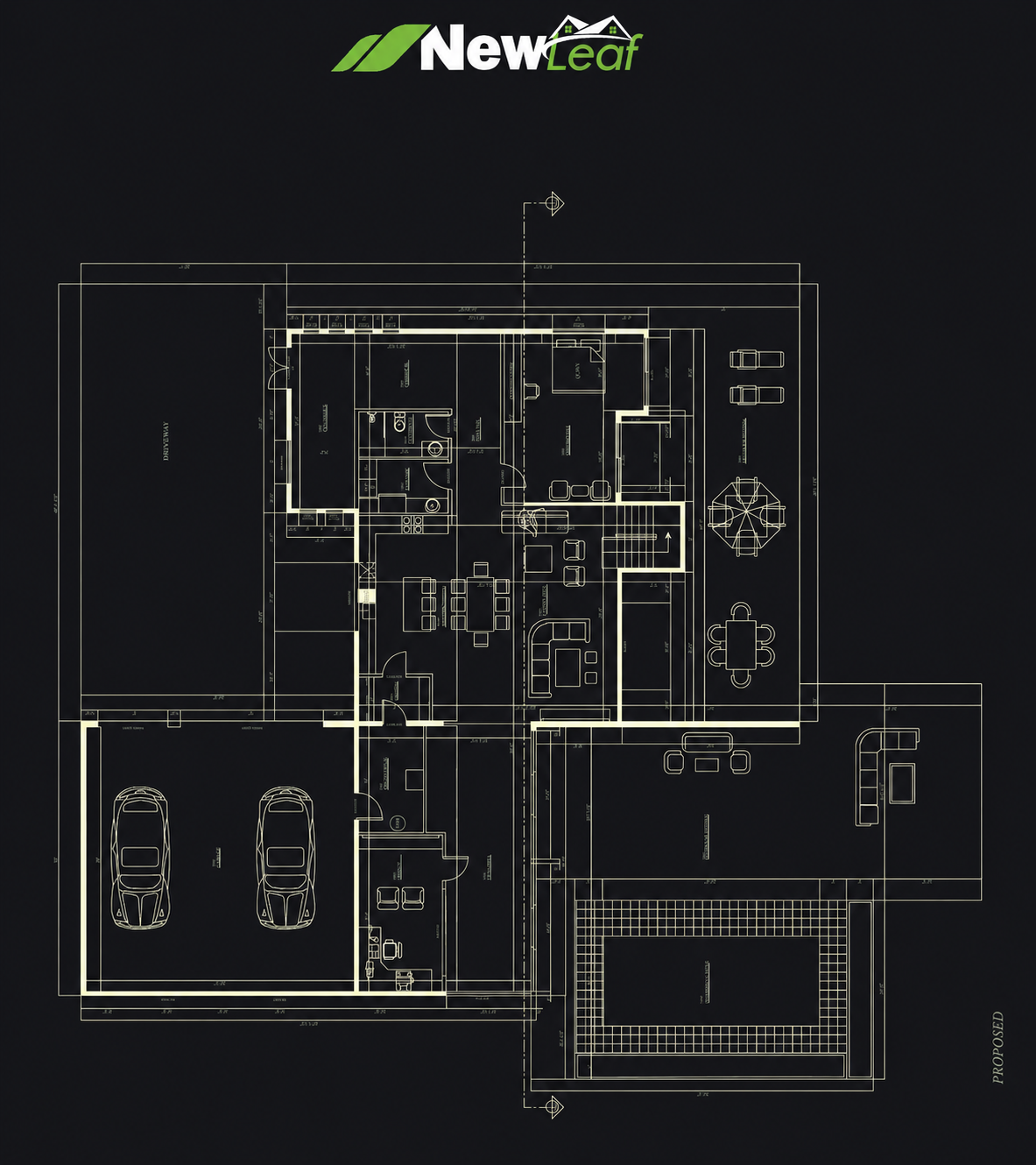

Planos arquitectónicos.
Recorrido virtual
Míralo en acción.
Ubicación y disponibilidad
Dónde entregamos.
Entrega disponible dentro de 1,500 km de cualquier instalación de New Leaf Vision. Los tiempos de entrega dependen de la configuración y la cola de producción vigente.
Cargando mapa…
BC+Alberta
Available-16 Week Lead Time
Ontario+Quebec
Available-24 Week Lead Time
Texas
Available-24 Week Lead Time
Florida
Available-24 Week Lead Time
Mexico-Bahia de Banderas
Available-16 Week Lead Time
Comienza tu proyecto
¿Listo para construir tu 107-THE COMPOUND ? Nuestro equipo te guiará en cada etapa, desde la evaluación del terreno hasta las llaves en mano.
